KWANGIL

AMSB 22AWG 3C Shielded Cable Wire (UL2464) - Highly Flexible Str TC, PVC Ins, OS+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

$53.99
-0%
$53.99
List Price: $53.99

  • Color: Matte Black
  • Brand: KWANGIL
  • Manufacturer: KWANGIL Electric Wire

Gauge: 22AWG
Length: 100ft
AMSB 22AWG 3C Shielded Cable Wire (UL2464) - Highly Flexible Str TC, PVC Ins, OS+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

AMSB 22AWG 3C Shielded Cable Wire (UL2464) - Highly Flexible Str TC, PVC Ins, OS+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

$53.99

AMSB 22AWG 3C Shielded Cable Wire (UL2464) - Highly Flexible Str TC, PVC Ins, OS+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

$53.99
Gauge: 22AWG
Length: 100ft

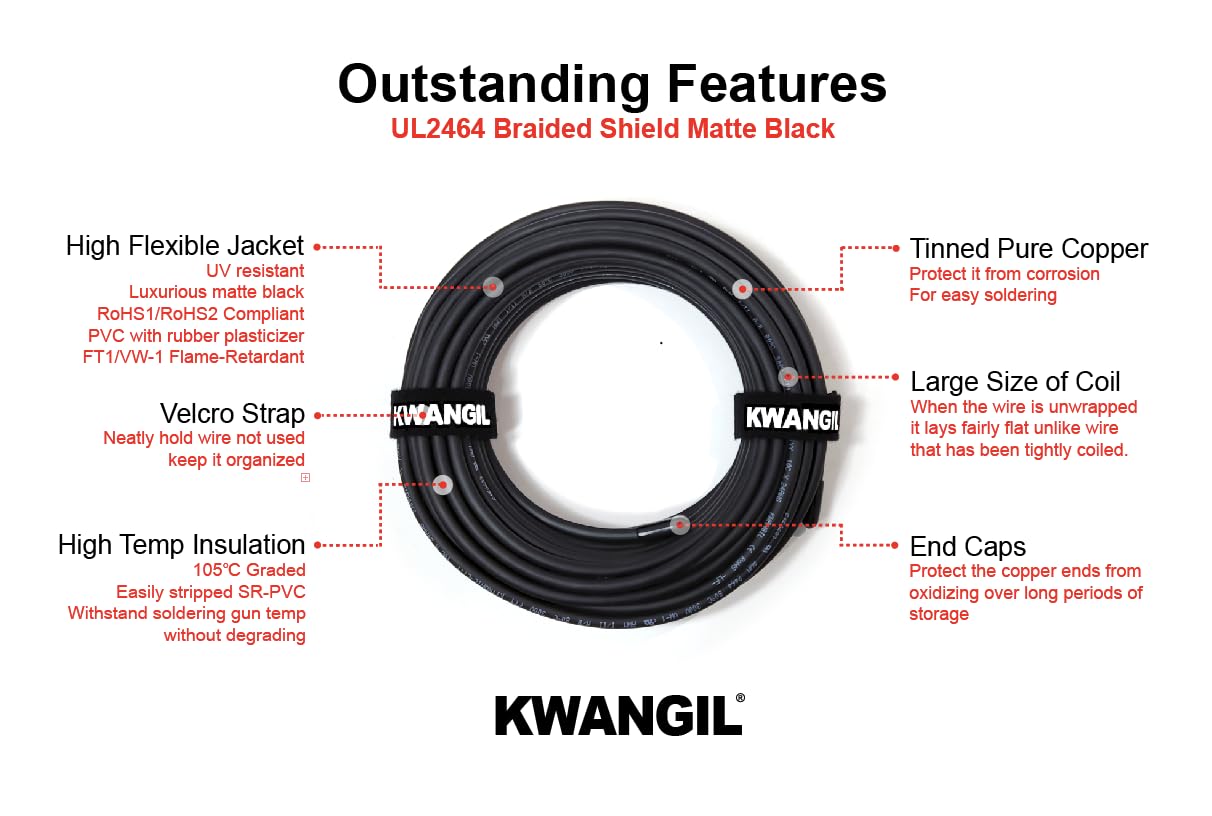

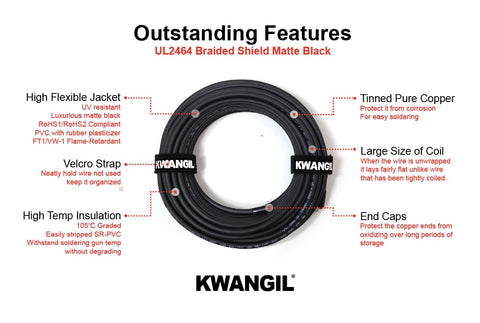

  • HIGHLY FLEXIBLE: With multi-stranded tinned copper and a durable, yet highly flexible PVC jacket with rubber plasticizer, this KWANGIL cable is perfect for any low voltage installation needs.

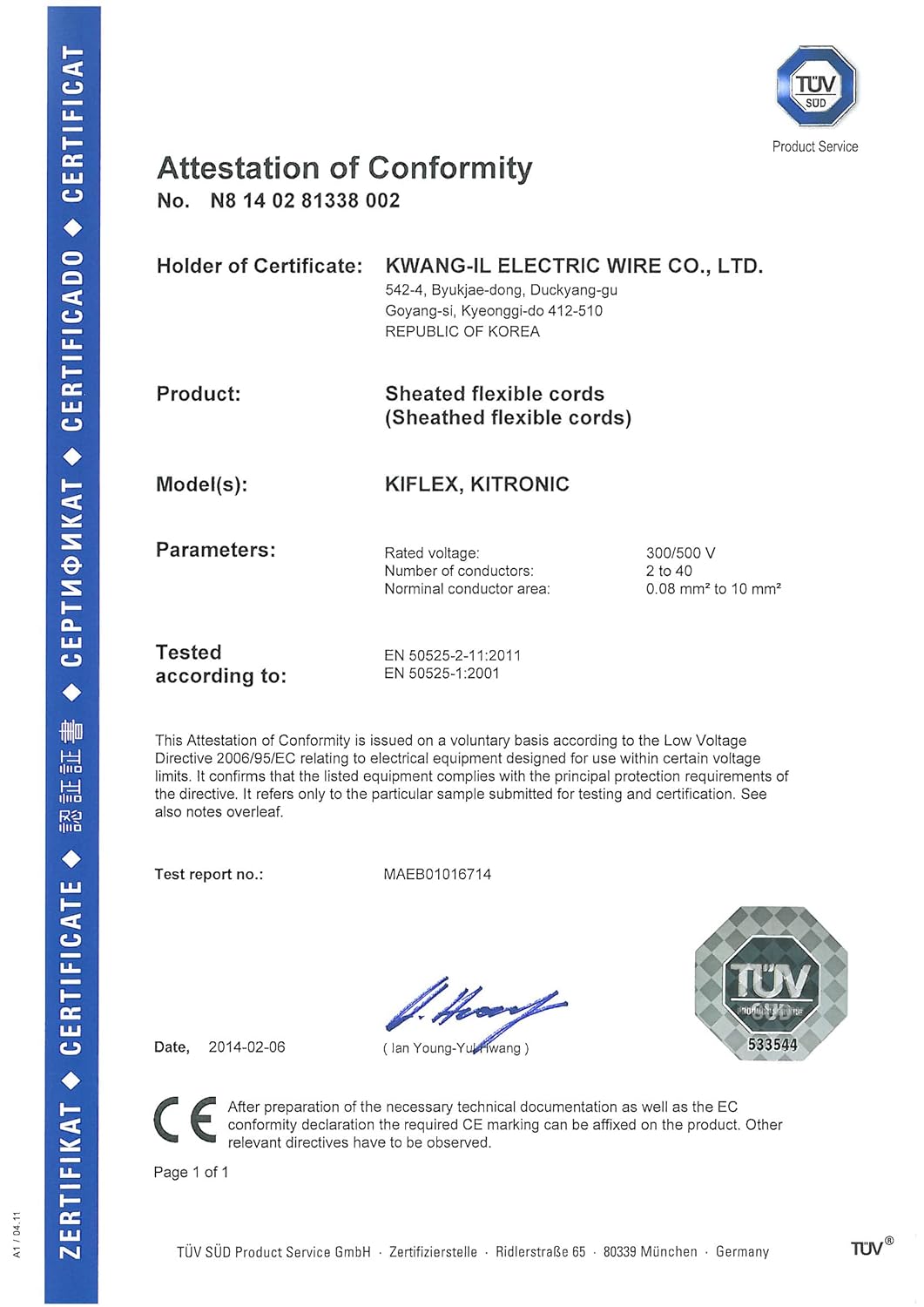

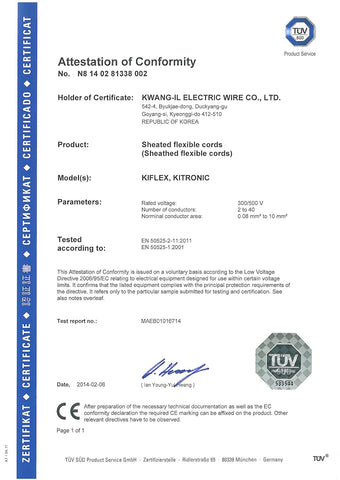

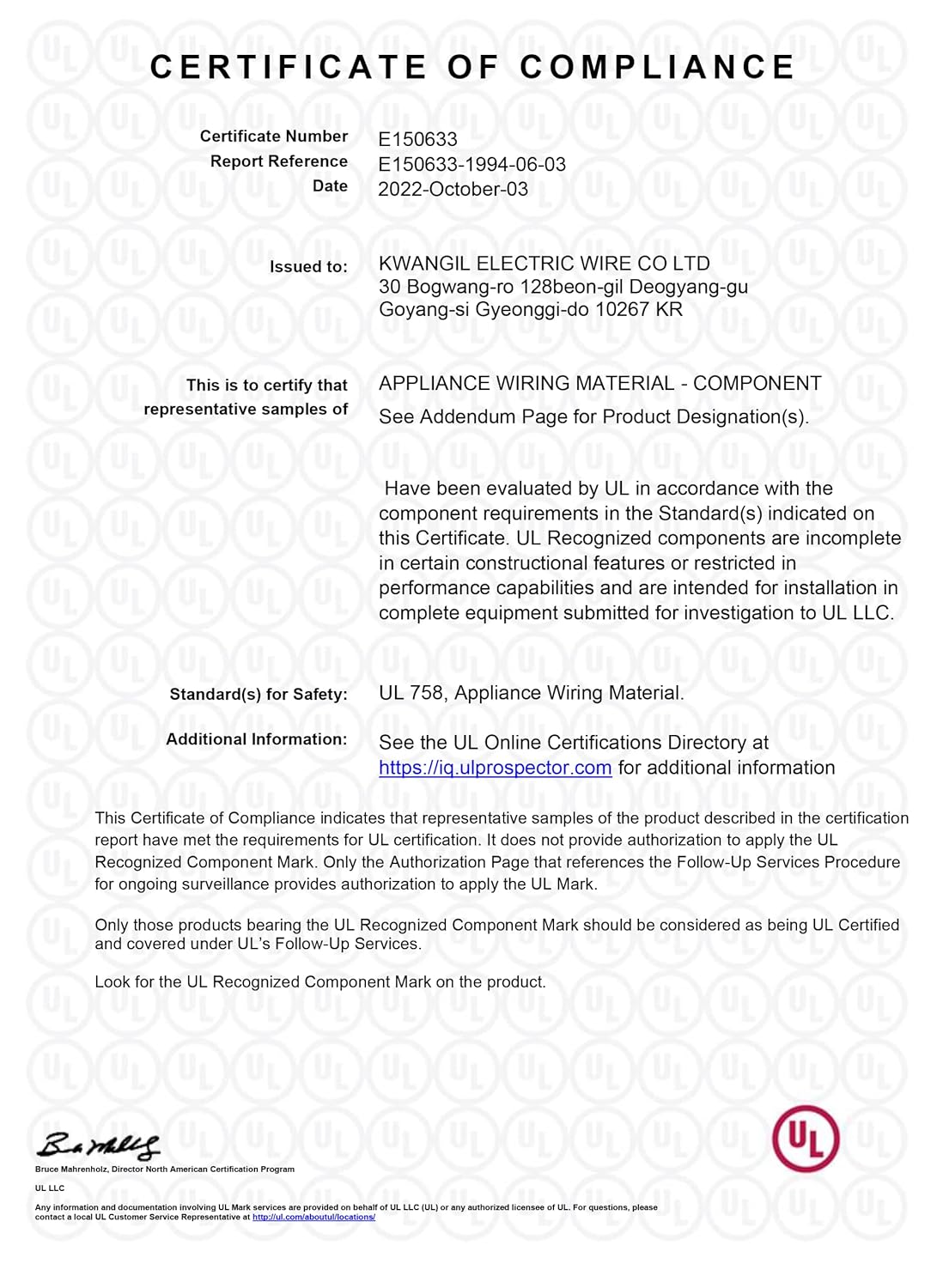

  • TRIPLE CERTIFIED: Our UL2464 Matte black cable is certified by UL, cUL, and CE, ensuring top quality and reliability for your projects. It's also UV resistant and meets RoHS, VW-1, and FT1 standards for 300V 80?? PVC insulation, and PVC jacket.
  • USED FOR VARIOUS PURPOSES: This UL2464 braided shielded cable wire can be used in a wide variety of applications, such as CNC Machine, Stepper Motor, VFD Spindle, low voltage analog signals, low voltage control, line level audio, voice communications, panel wiring, and much more.
  • EASY STRIPPING JACKET OFF: Moderately loose extrusion makes it easy to strip the outer jacket off without cutting into the inner insulated wires. The pressure of extrusion was adjusted according to temperature, humidity, and the characteristics of PVC material, so that the jacket could be easily removed from 1.5 inches to 2 inches.
  • MADE IN KOREA: Since 1984, KWANGIL has been a successful manufacturer of wire and cable products in Korea. KWANGIL has provided the industrial, robotics, factory automation, aerospace, shipbuilding, transportation, telecommunications, and medical industries, as well as distributors, the government, manufacturers and military with all their cable products.

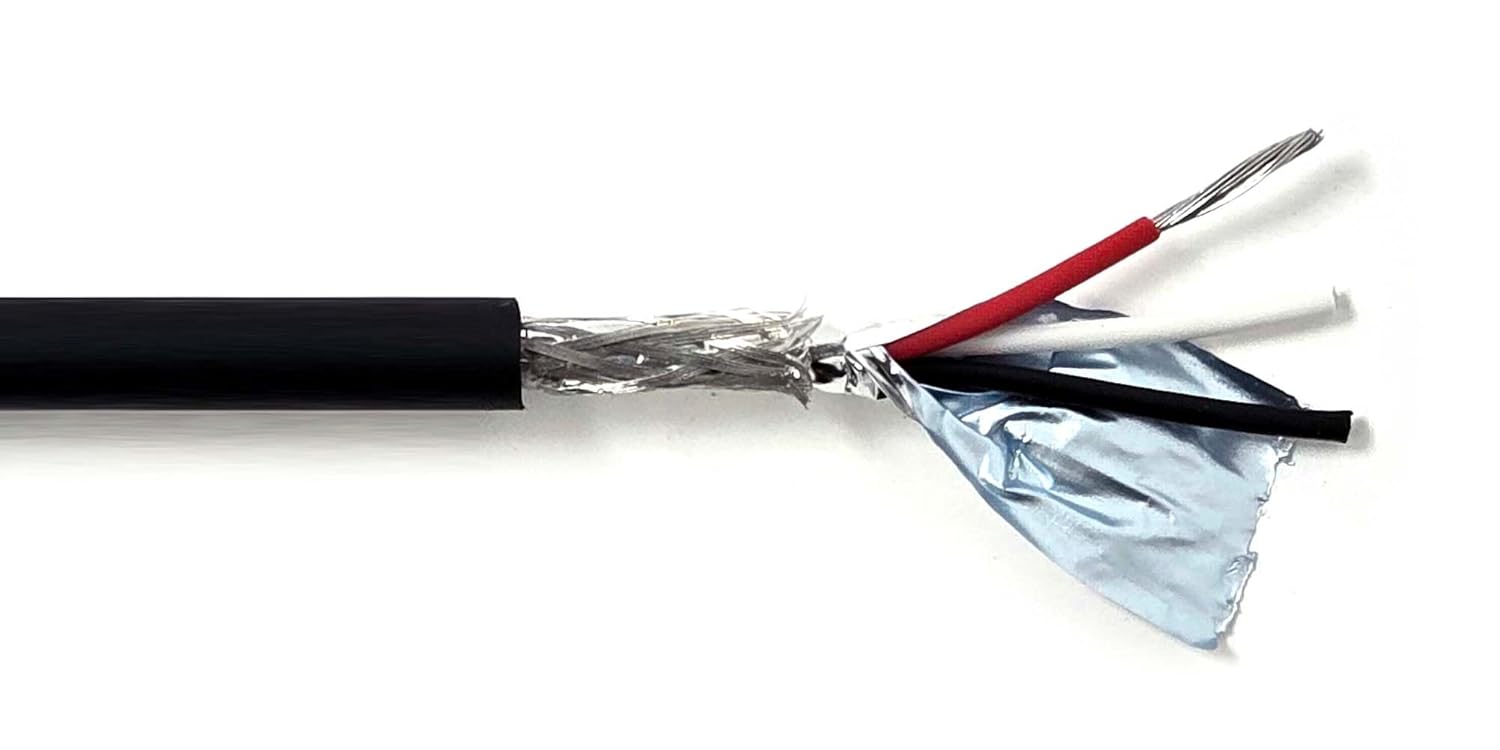

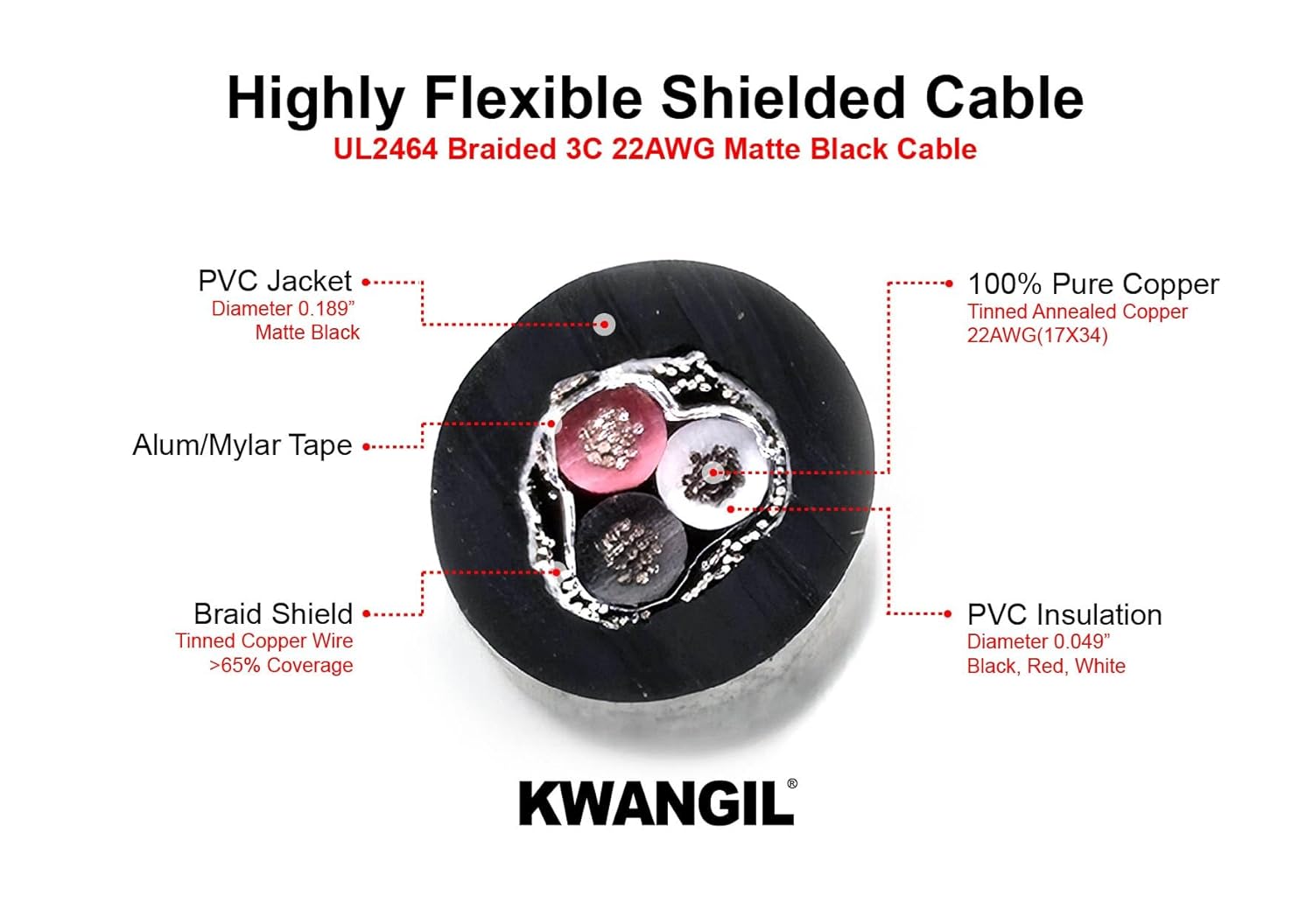

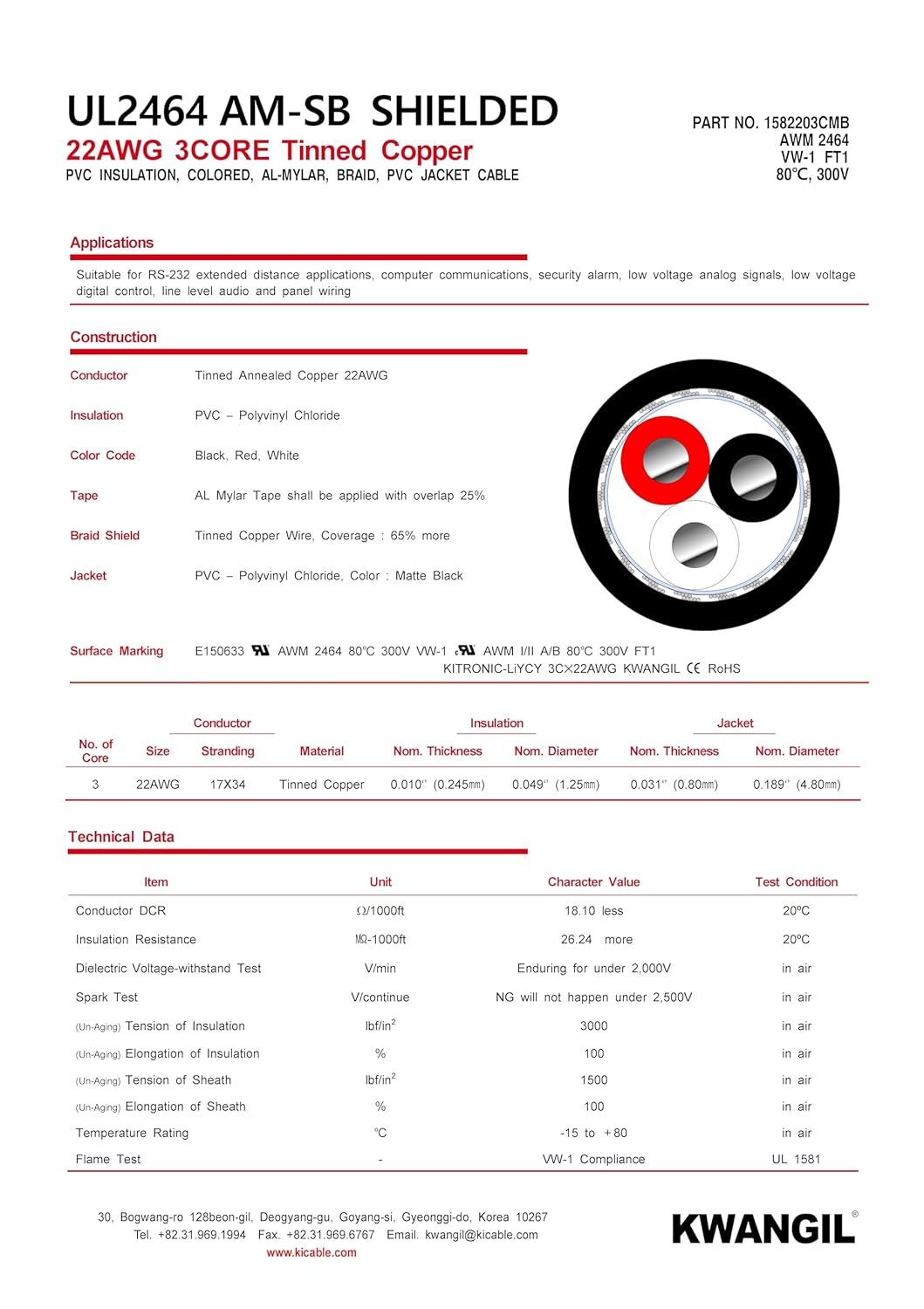

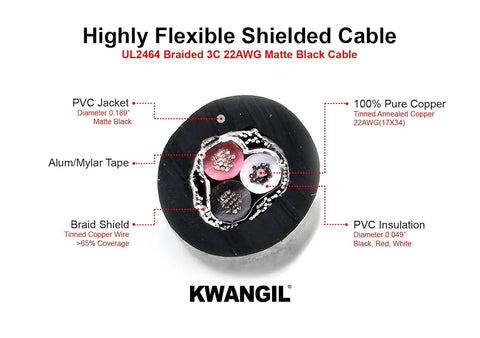

22AWG 3 Conductor Cable (UL2464) - Flexible OS+TC BRD Cable

No of Core 3
Conductor 22AWG(17X34)/0.34mm², Tinned stranded copper
Insulation Diameter 0.049??â??(1.25??, SR-PVC
Tape AL Mylar Tape, applied with overlap 25%
Braid Shield Tinned Copper Wire, Coverage : 65% more
Jacket Diameter 0.189??â??(4.80??, PVC, Matte Black
UL AWM UL Style 2464 (300V 80°C)
Color Code Black, Red, White
Cond. Resistance 18.10 less ??1000ft at 20°C(68°F)
Insu. Resistance 26.24 more ??1000ft at 20°C(68°F)
Spark Test NG will not happen under 2.5kV/continue
Dielectric Strength Enduring for under 2,000V/min in air
Operating Temp -15??to ï¼?0??in air
Flame Test VW-1 Compliance with UL 1581
Environmental RoHS Compliance
