AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

KWANGIL

AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

$46.79
$46.79
List Price:

  • Color: Gray
  • Brand: KWANGIL
  • No. of wires: 6
  • Gauge: 20.0
  • Voltage: 300 Volts
  • Manufacturer: KWANGIL Electric Wire

Gauge:20AWG 6C

Length: 50ft
Ask about the product
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

$46.79
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle
AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

AMESB 20AWG 6C Shielded Cable Wire (UL2464) - Flexible Str TC, PVC Ins, OS+Drain+TC BRD, PVC JKT for CNC Machine, Stepper Motor, VFD Spindle

$46.79
Gauge: 20AWG
Length: 50ft
Description

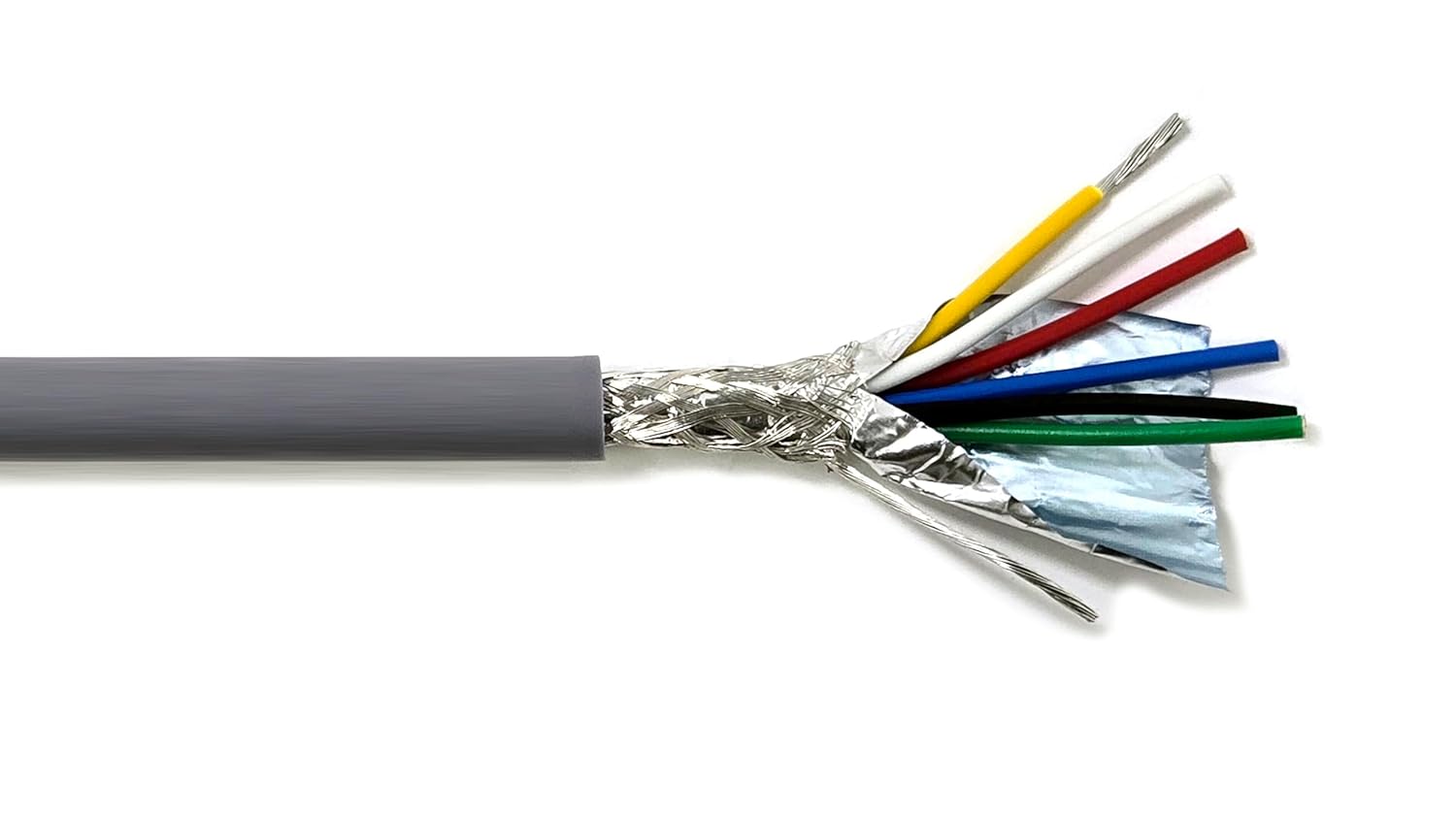

  • FLEXIBLE: With multi-stranded tinned copper and a durable, yet flexible PVC jacket, this KWANGIL cable is perfect for any low voltage installation needs.
  • TRIPLE CERTIFIED: Our UL2464 Gray cable is certified by UL, cUL, and CE, ensuring top quality and reliability for your projects. It also meets RoHS, VW-1, and FT1 standards for 300V 80?? PVC insulation, and PVC jacket.
  • USED FOR VARIOUS PURPOSES: This UL2464 braided shielded cable wire can be used in a wide variety of applications, such as CNC Machine, Stepper Motor, VFD Spindle, low voltage analog signals, low voltage control, line level audio, voice communications, panel wiring, and much more.
  • EASY STRIPPING JACKET OFF: Moderately loose extrusion makes it easy to strip the outer jacket off without cutting into the inner insulated wires. The pressure of extrusion was adjusted according to temperature, humidity, and the characteristics of PVC material, so that the jacket could be easily removed from 1.5 inches to 2 inches.
  • MADE IN KOREA: Since 1984, KWANGIL has been a successful manufacturer of wire and cable products in Korea. KWANGIL has provided the industrial, robotics, factory automation, aerospace, shipbuilding, transportation, telecommunications, and medical industries, as well as distributors, the government, manufacturers and military with all their cable products.

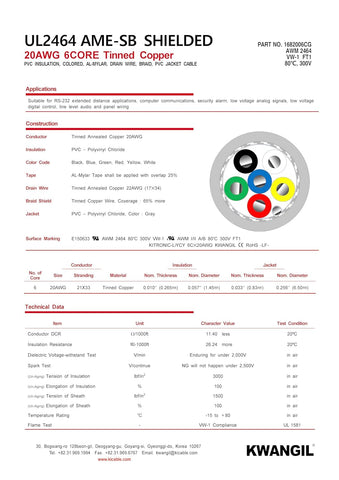

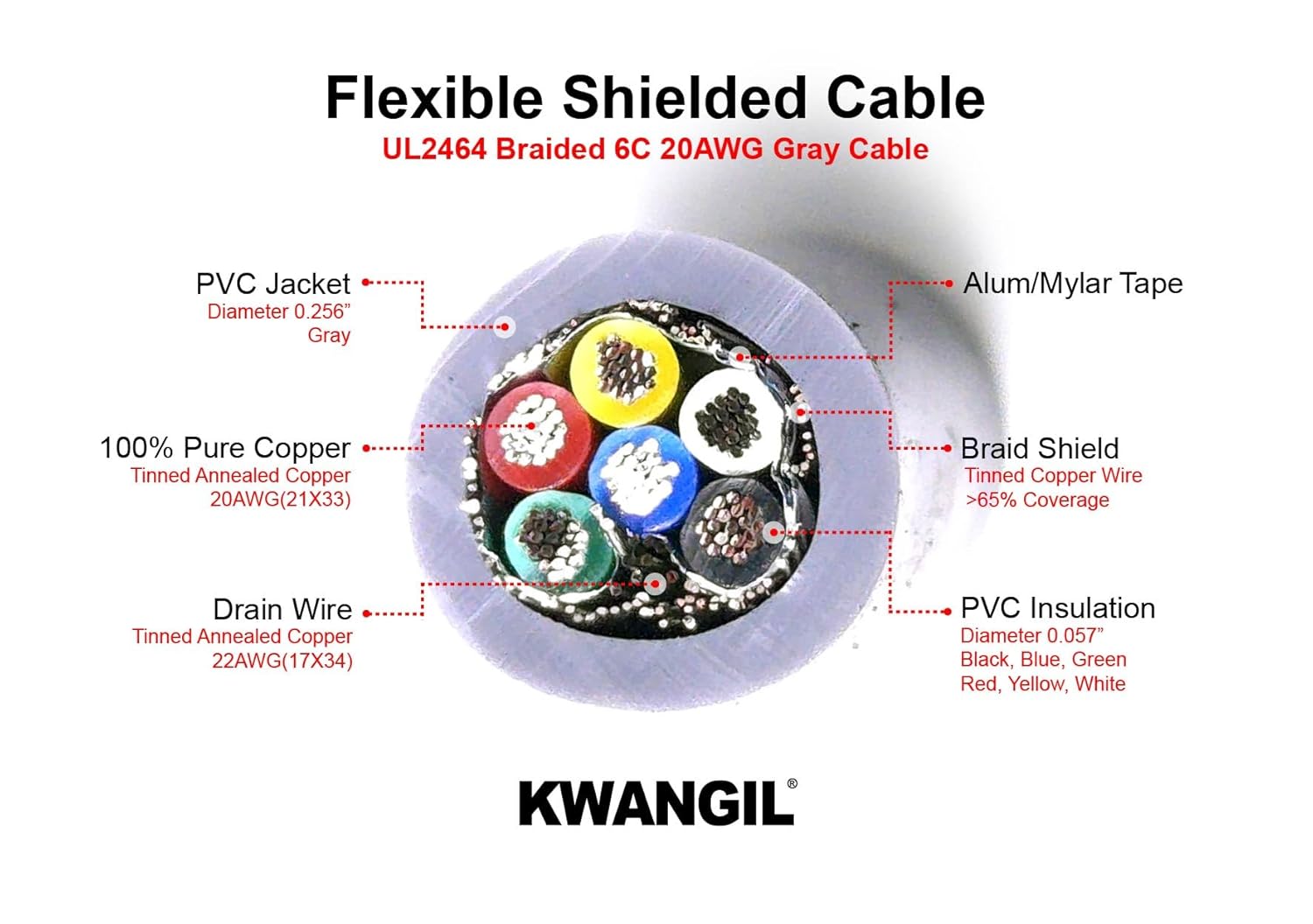

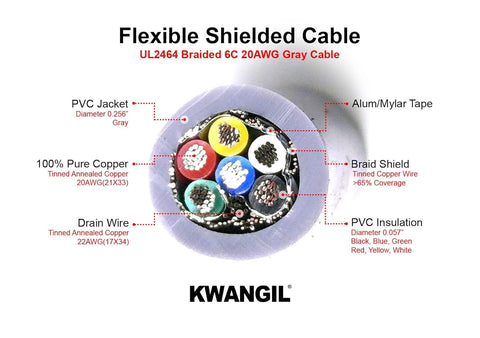

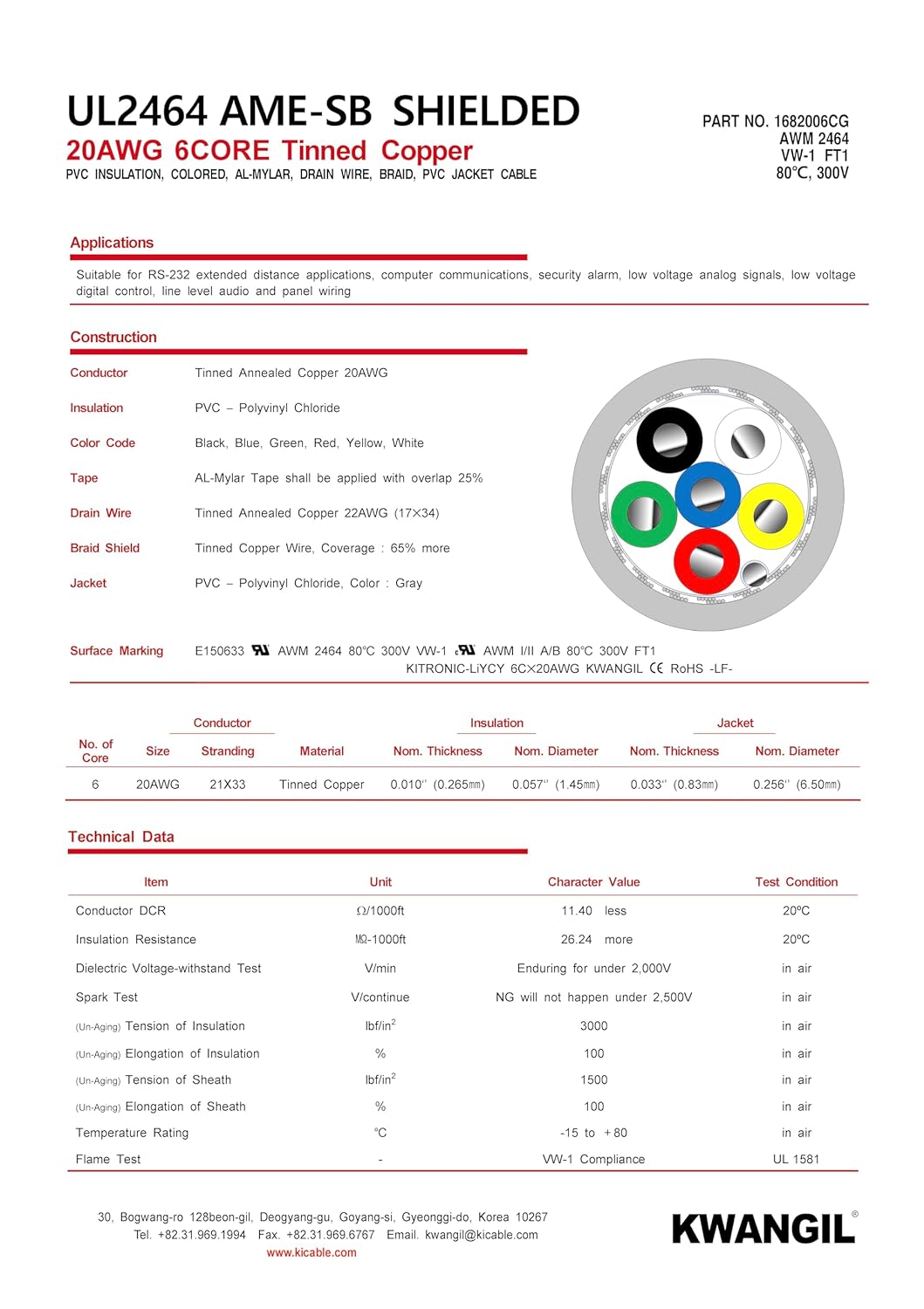

20AWG 6 Conductor Cable (UL2464) - Flexible OS+Drain+TC BRD Cable

No of Core 6
Conductor 20AWG(21X33), Tinned stranded copper
Insulation Diameter 0.057??â??(1.45??, SR-PVC
Tape AL Mylar Tape, applied with overlap 25%
Drain Wire 22AWG(17??4), Tinned Annealed Copper
Braid Shield Tinned Copper Wire, Coverage : 65% more
Jacket Diameter 0.256??(6.50??, PVC, Gray
UL AWM UL Style 2464 (300V 80°C)
Color Code Black, Blue, Green, Red, Yellow, White
Cond. Resistance 11.4 less ??1000ft at 20°C(68°F)
Insu. Resistance 23.20 more ??1000ft at 20°C(68°F)
Spark Test NG will not happen under 2,500V/continue
Dielectric Strength Enduring for under 2,000V/min in air
Operating Temp -15??to ï¼?0??in air
Flame Test VW-1 Compliance with UL 1581
Environmental RoHS Compliance
Return & Refund Policy

We want you to be fully satisfied with your purchase. If for any reason you are not satisfied, please review our return and refund policy below.



1. Right of Withdrawal (EU Consumers)

If you are a consumer residing in the EU, you have the right to withdraw from this contract within 14 days after the day you received the goods, without giving any reason.

To exercise your right of withdrawal, you must notify us (hello@skullpig.eu
) with a clear statement (e.g., email) of your decision to withdraw.

You may use the model withdrawal form provided, but it is not mandatory.



2. Effects of Withdrawal

If you withdraw within the 14-day period, we will refund all payments received from you, including standard delivery costs, within 14 days of being informed of your decision.

We may withhold the refund until we receive the goods back or until you provide proof of return, whichever is earlier.

Refunds will be made using the same payment method you used, unless otherwise agreed.



3. Return Shipping Costs

You are responsible for the direct cost of returning the goods, unless the goods were delivered incorrectly or are defective.

If the goods are too large for regular post, we can arrange collection at your expense.



4. Conditions of Returned Goods

Returned goods must be sent back in their original condition: unworn, unwashed, undamaged, and with original tags/packaging.

If the value of the goods has been diminished due to handling beyond what is necessary to establish their nature, characteristics, and functioning, you may be liable for the diminished value.



5. Exceptions to Withdrawal

The right of withdrawal does not apply to:

Sealed goods not suitable for return due to health or hygiene reasons, once unsealed.

Custom-made or personalized items.

Promotional sale or giveaway items, where explicitly stated.


6. Returns After 14 Days

Returns requested after the statutory 14-day period may be accepted at our discretion (if applicable), and may be subject to restocking fees.



7. Defective or Wrong Items

If you receive defective goods or the wrong item, please contact us immediately.

In such cases, we will bear the cost of return shipping and provide a replacement or full refund.



8. Contact for Returns

Email: hello@skullpig.eu

Return Address: Na Maninách 1590/29, 170 00 Praha 7, Czech Republic

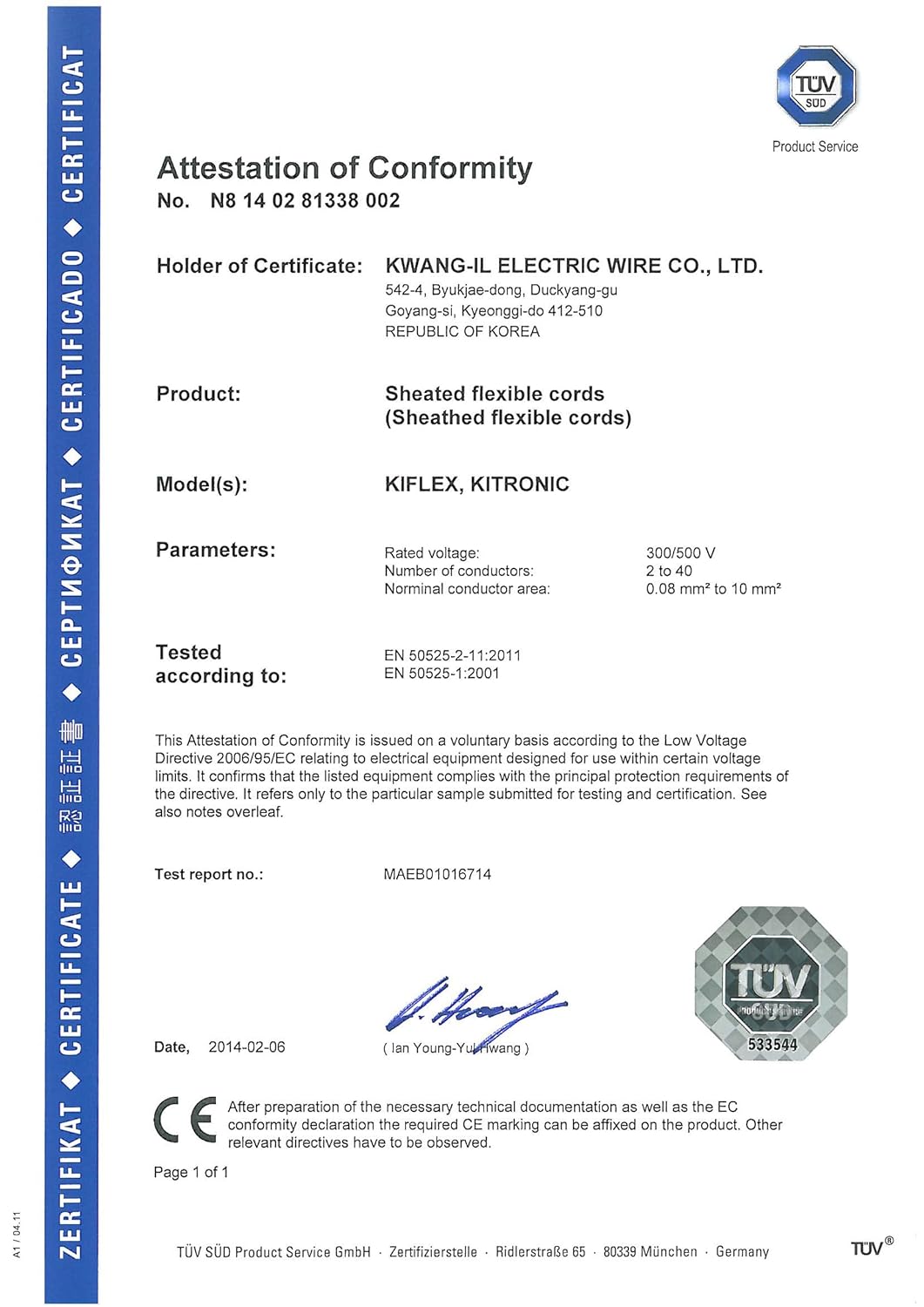

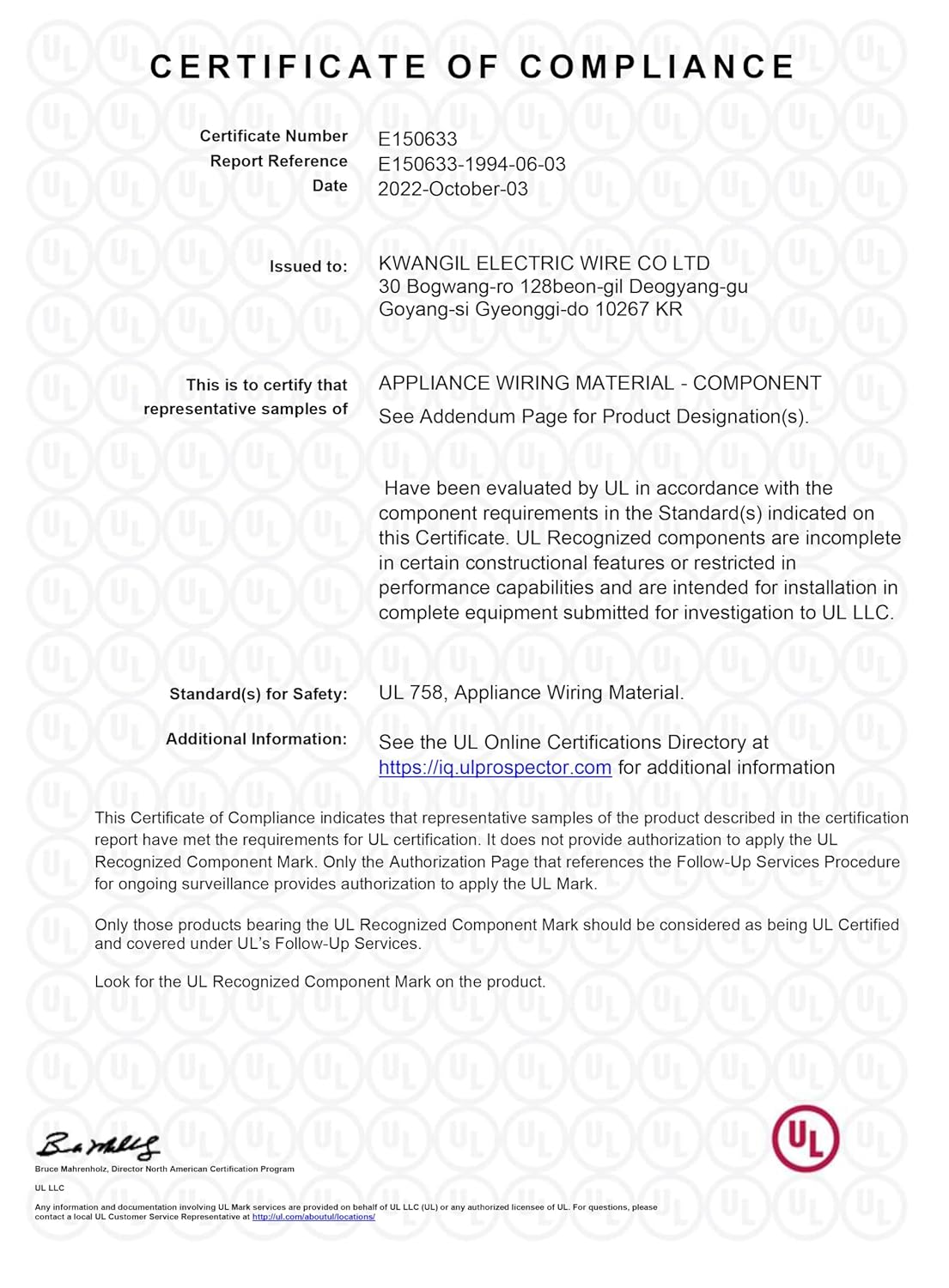

Triple Global Standard

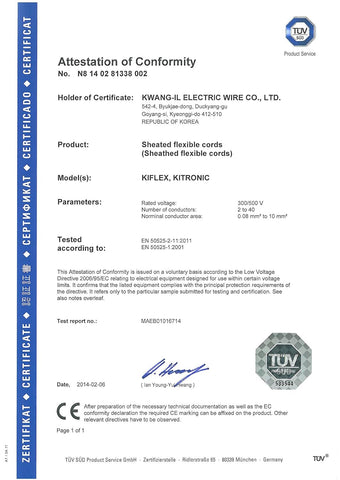

The UL2464 Shielded Gray cable meets global standards such as UL, cUL, and CE to ensure top quality and reliability of many kinds of projects. It is also UV resistant and meets RoHS, VW-1, and FT1 specifications for 300V 80℃, PVC insulation, and PVC jackets. UL and cUL have been granted since 1995, and CE since 2012.

Ultimate EMI/RFI Protection

UL2464 AME-SB Shielded Cable offers superior protection against EMI and RFI with its high-performance braided shield. The durable yet flexible design allows easy installation while ensuring signal integrity. Ideal for industrial automation and control systems, it provides strength, grounding, and long-lasting performance.

Used For Various Purposes

This braided shielded core cable is suitable for a wide variety of applications, including CNC machinery, RS-232 serial communication, factory automation, and other low-voltage signal transmissions. It is also ideal for connecting legacy system interfaces and multi-signal RS-232 configurations, offering reliable performance in demanding environments.

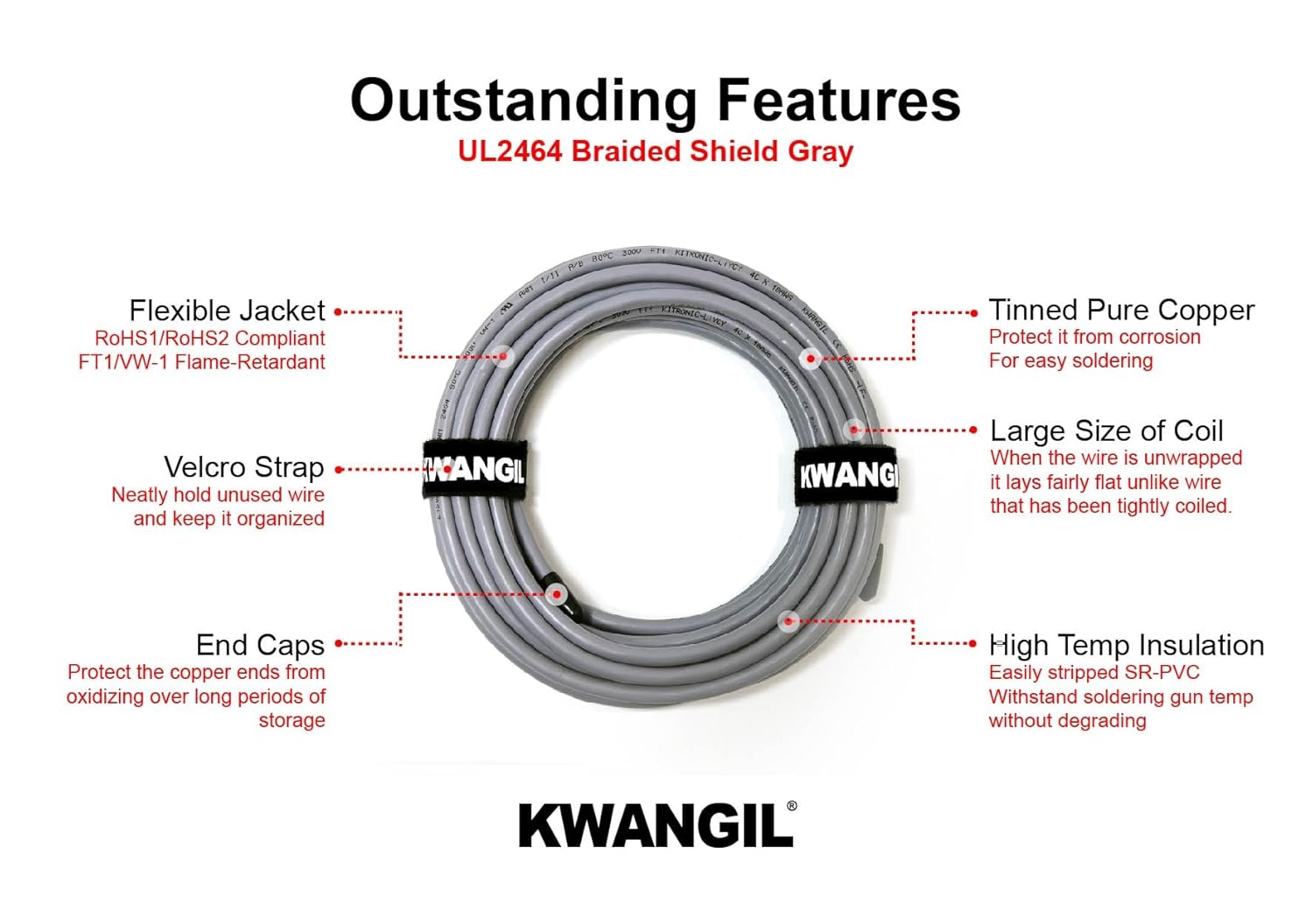

Easy Stripping Jacket Off

Moderately loose extrusion makes it easy to strip the outer jacket off without cutting into the inner insulated wires. The pressure of extrusion was adjusted according to temperature, humidity, and the characteristics of PVC material, so that the jacket could be easily removed from 1.5 inches to 2 inches.
