Access Control Composite Plenum Rated Cable - 18AWG/4C+22AWG/6C Shielded+22AWG/2C+22AWG/4C - Stranded Bare Copper Conductors

I used this for some low voltage controls wiring. Rugged. As typical. A bit tricky to stop with the shielding but we'll worth it. Would buy again.

Great choice for access control installation all the necessary cables in one bundle.

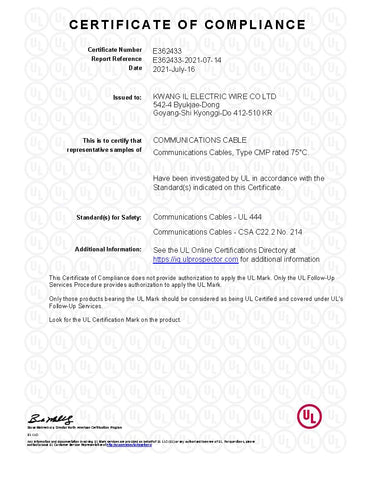

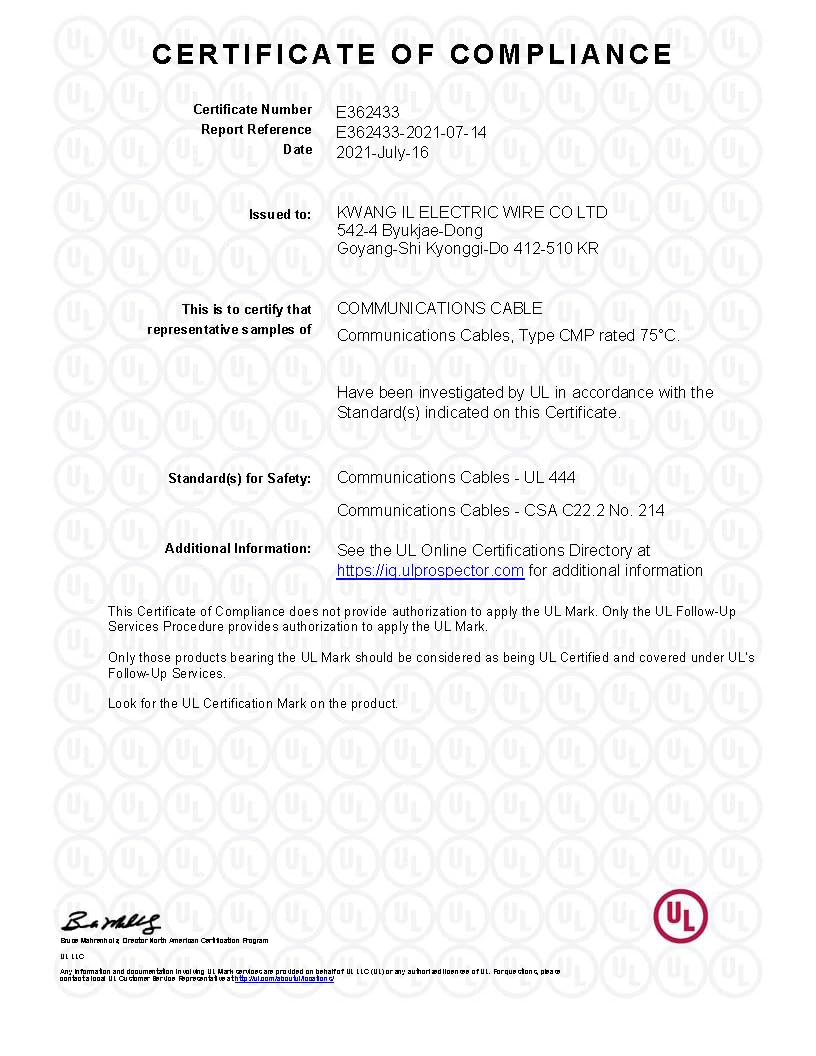

A very nice quality cable, really 18 AWG wires, (yes, I found fake ones) for the 18, and decent cable for the others.. Good drain wire and thick aluminum cladding for the white core. Each core has its own marking, which makes them suitable to split once the pull reaches the door location.The cable has no voltage or temperature rating, these are implied by the CMP (plenum) marking for which certification requires 300V and minimum flame/temperature resistance. Since the cable is UL, this can be validated, and I checked it.UL certification is required by Canadian Electrical code, which is good.

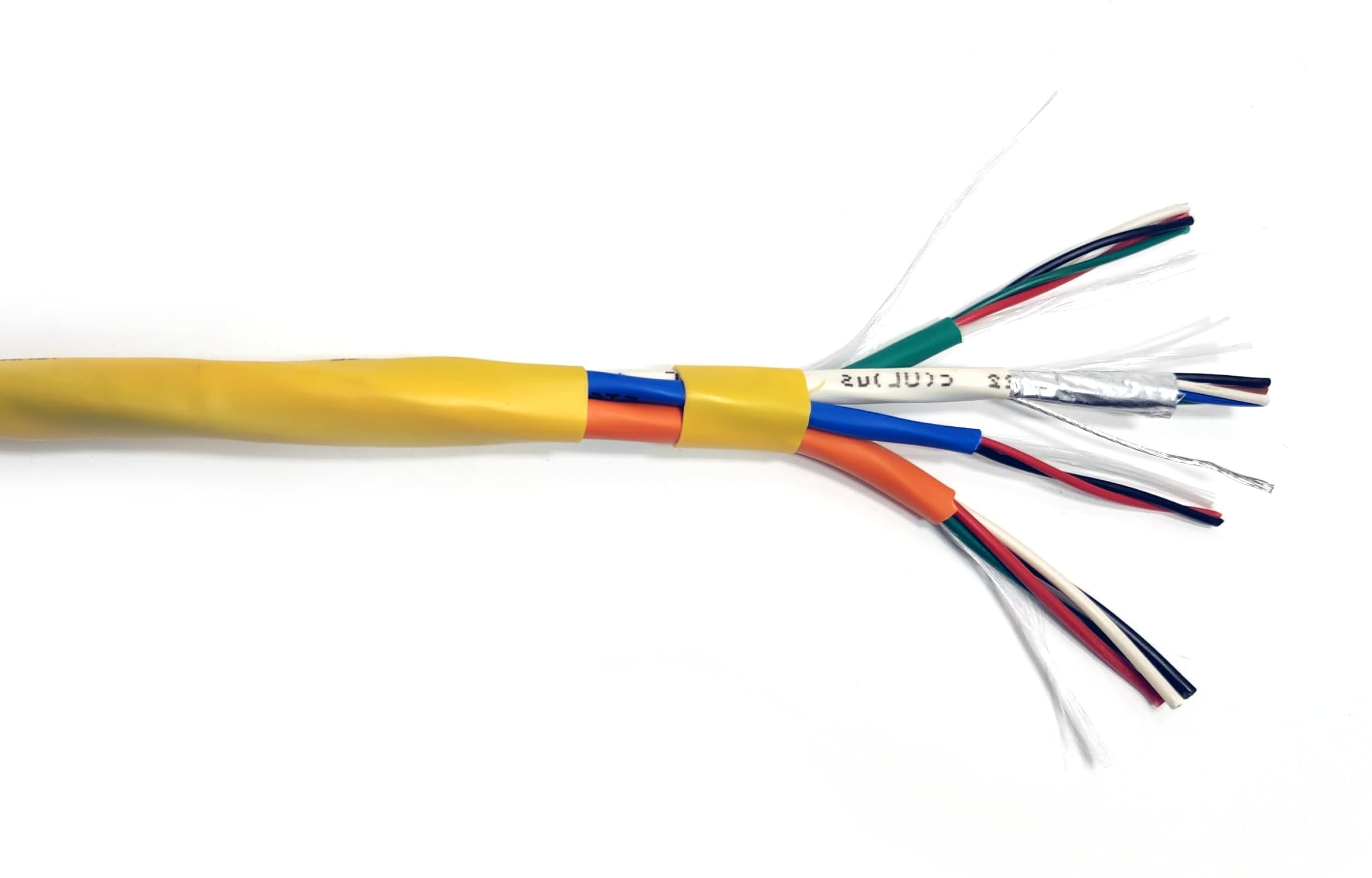

I ordered this access control cable and was thoroughly impressed with the quality right out of the box.HighlightsGenuine Copper WiresAll conductors are made from real copper — no copper-clad aluminum (CCA) tricks here. That’s a major plus for long-term reliability and electrical safety.Proper Color Coding & LabelingEach wire is color-coded correctly and clearly labeled for its specific function (e.g., card reader, door contact, door striker plate, request-to-exit). This makes installation much easier and more professional.ShieldingThe card reader wires are shielded to prevent interference — a critical feature for maintaining signal integrity.Protective End Caps & Velcro TiesThe cable arrived with end caps on both ends to protect the wires during shipping — a small but thoughtful detail.It also came with Velcro cable ties to keep the bundle neat and tangle-free, which was great for storage and handling.UL Listing & Build QualityThe cable claims to be UL listed, and judging by the construction, I believe it. It’s built to a high standard and feels like a professional-grade product.PricingAt $2.18 per foot, the price is fair for the quality. If you're working on a larger project, buying in bulk could bring the cost per foot down even further.Final ThoughtsThis is some of the highest quality access control cable I’ve come across.No defects. No cutting corners. No CCA nonsense. Just excellent materials, proper labeling, and thoughtful design.Highly recommended for both professional installations and serious DIY projects where reliability matters.

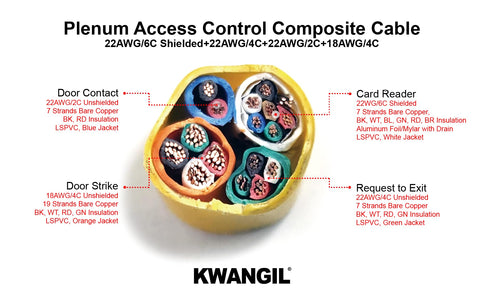

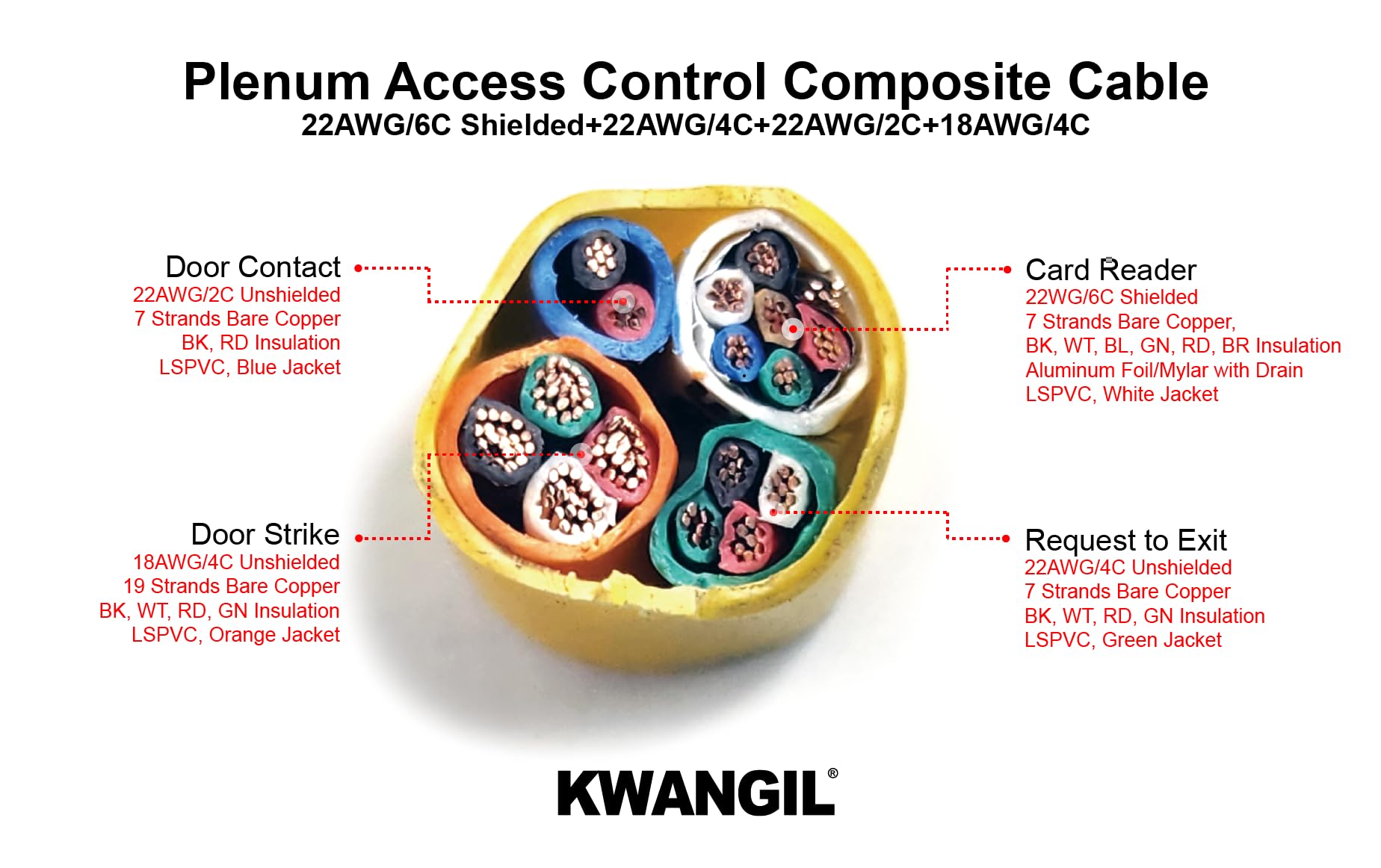

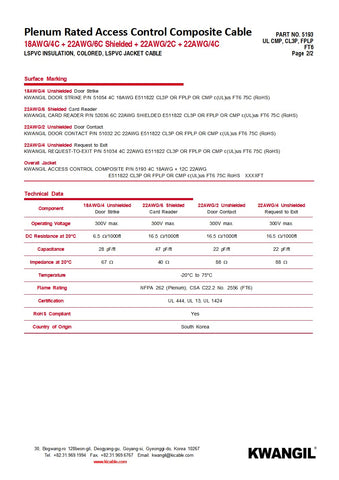

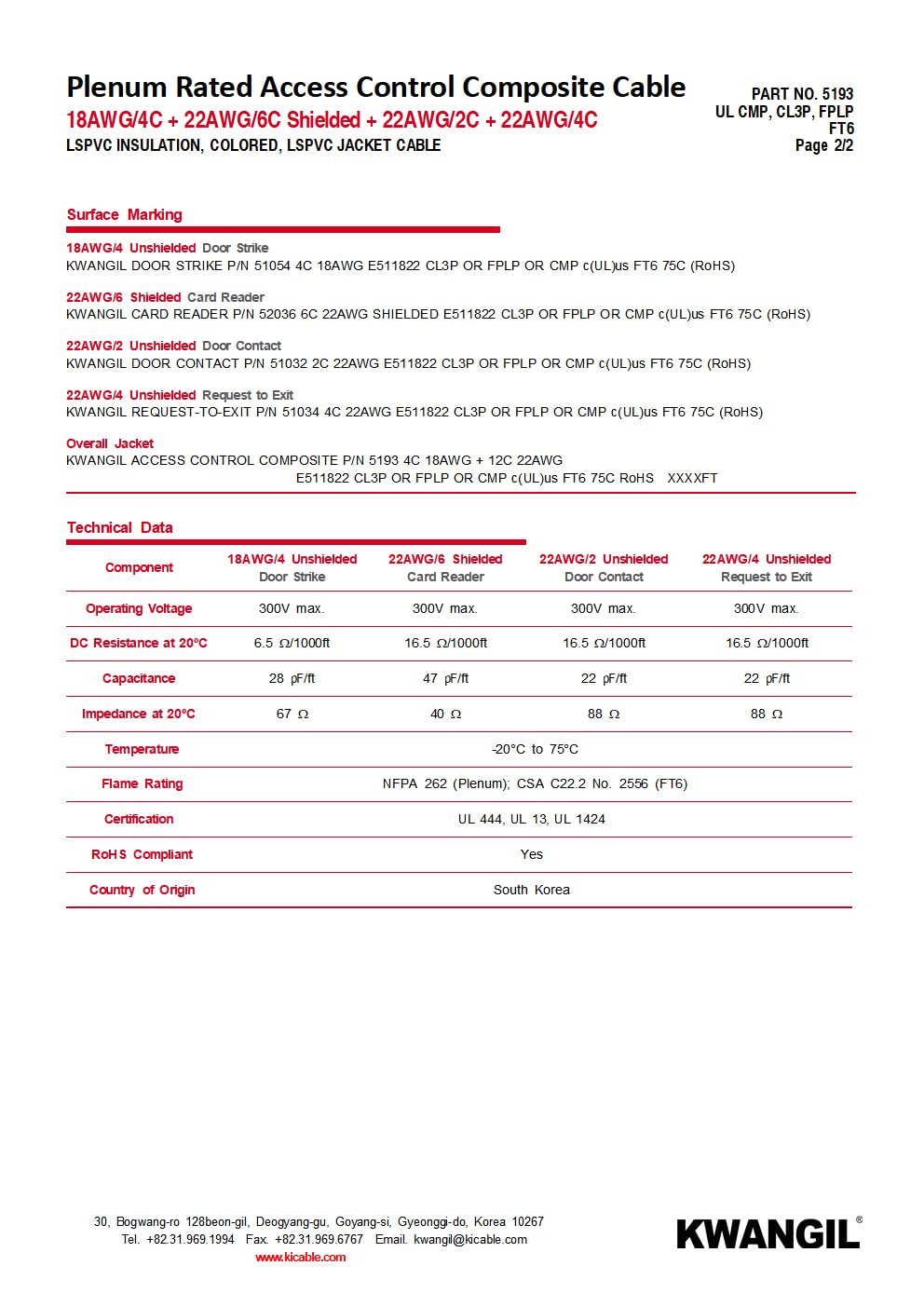

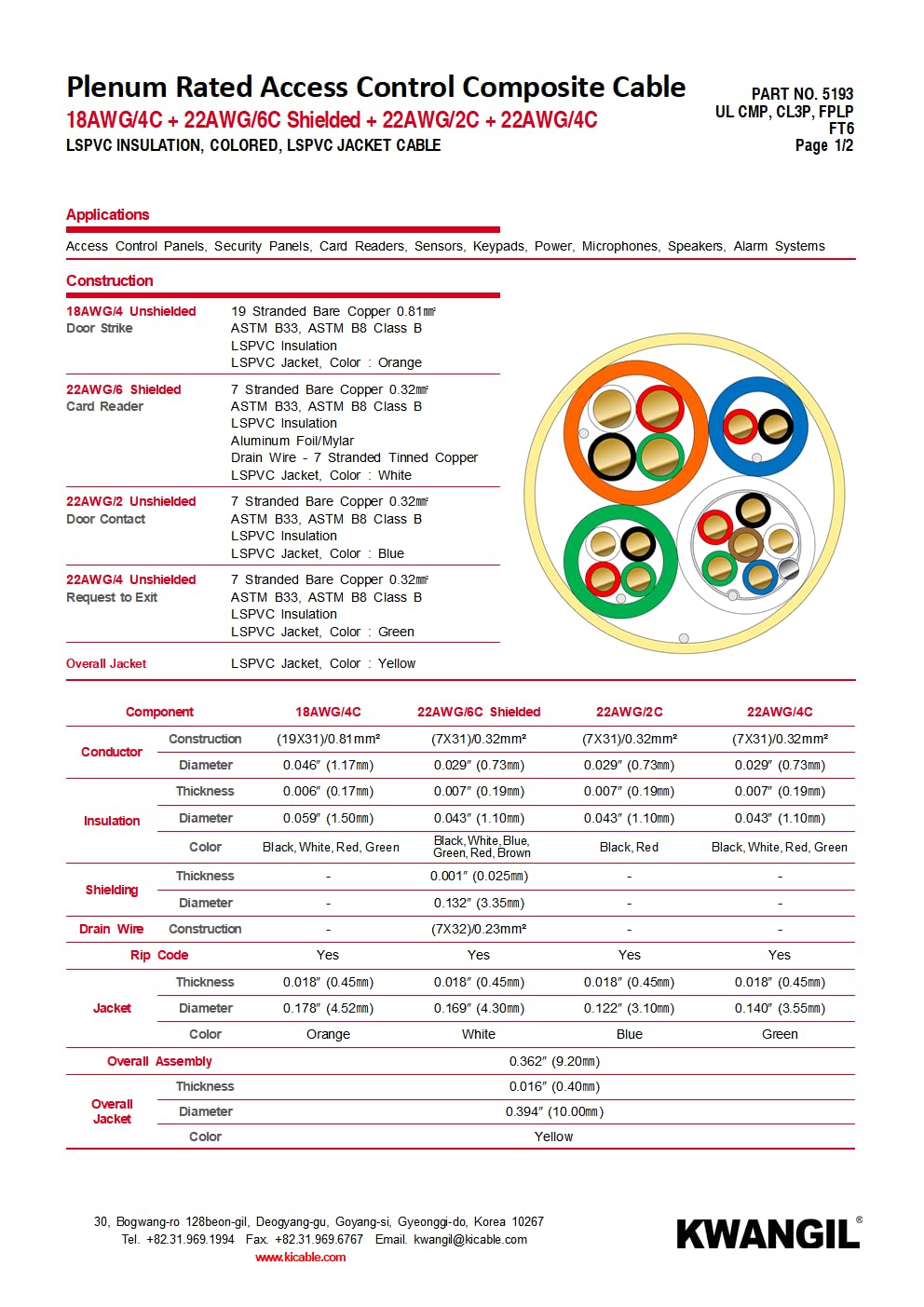

This access control cable seems to be high-quality UL listed cable that provides all the necessary wiring for access control systems in a single composite cable. This access control cable features an 18awg / 4-conductor wire for the electric door strike or crash bar, a 22awg / 6-conductor wire for the card reader, a 22awg / 4-conductor wire for the Request to Exit button or sensor, and a 22awg / 2-conductor wire for the door sensor, all individually insulated and wrapped in a single composite cable. Each internal wire is easily identifiable, and each conductor is easy to strip, allowing installers to install the access control system quickly and efficiently. The yellow outer jacket of this access control cable is also easily identifiable, even up in a ceiling, and has the following labeling printed on the jacket. KWANGIL ACCESS CONTROL COMPOSITE P/N 5193 4C 18AWG + 12C 22AWG E511822 CL3P OR FPLP OR CMP c(UL)us FT6 75C (RoHS) 0000FT
